How to Configure GPON ONT NuBiz GM2104G-W


BSNL provide high speed internet connection through FTTH ( Fibre To The Home) connection with affordable price. Here I will dhow you how to configure  GPON ONT NuBiz  GM2104G-W  Router.

Step 1: Open any browser and type on URL 192.168.1.1. (Enter)
One Browser will come for Authentication. Use Username - utstar and password- utstar and click on Submit.


Step 2: After submit ONT console will come.
Now click on Network Menu then on Internet and set like given:
Connection Name:Add New WAN Connection
Mode: Route
Connection Type PPPOE and set User Name and Password as Your ISP provide,
Vlan ID:Like 200 ( set as your ISP provide),
Service Mode: TR069_INTERNET and click on Save/Apply.

After save one window will come like given below:

This Configuration for Internet Connection

Step 3: After submit ONT console will come.
Now click on Network Menu then on Internet and set like given:
Connection Name:Add New WAN Connection
Mode: Route
Connection Type Static and set IP address, Subnet Mask, Default Gateway, Primary DNS, Secondary DNS as  Your ISP provide,
Vlan ID:Like 201 ( set as your ISP provide),
Service Mode: TR069_VOIP and click on Save/Apply like bebow.

This Configuration for VOIP Connection

Step 4:  Click on Application button -> NAT.
 Tick on Enable SIP and click on save.
VOIP Configuration
Setp 4: You need to Some other setting  Proxy Server, External Proxy Server and Registering server.  Select region as your region. Set IP address  and Port Number.

Proxy Server = 192.168.149.78  and Port = 5060
External Proxy Server = 192.168.149.78 and Port = 5060
Registering server = 192.168.149.78 and Port = 5060

Set Telephone under port base setting and click Apply
User ID = 9133XXXXXXXX       (XXXXXXX as your Telephone No)
Display Nane = 9133XXXXXXXX       (XXXXXXX as your Telephone No)
Auth. Username = 9133XXXXXXXX       (XXXXXXX as your Telephone No)
Auth. Password = 9133XXXXXXXX       (XXXXXXX as your Telephone No)



Step 5: Wi-Fi Setting:
For wi-fi setting click on Network -> WLAN.
Tick on Enable Wireless for enable wi-fi and set SSID name as you want. You can enable 4 No of SSID for this type ONT. Just tick on Enable and set different  name as you want. You can set security password for differnt SSID will be Same.

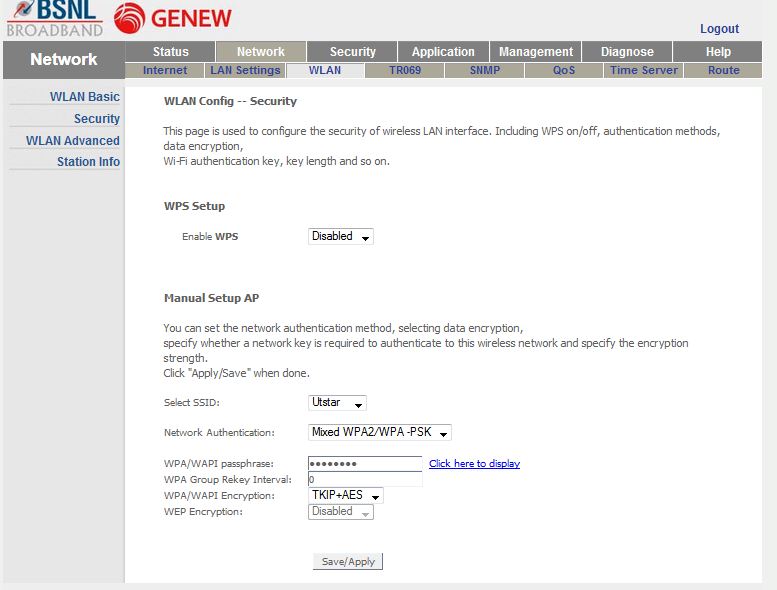

Step 6: Disable WPS setup . Select SSID from Drop Down Menu and set corresponding security key.
Now click on Save/Apply.
Security Setup
You may forget security key of any SSID.
So select SSID from Drop Down Menu and  click "click here to display" to show the security Key


Thank You
Visit Again
